Double double leaching briefing room
Introduction

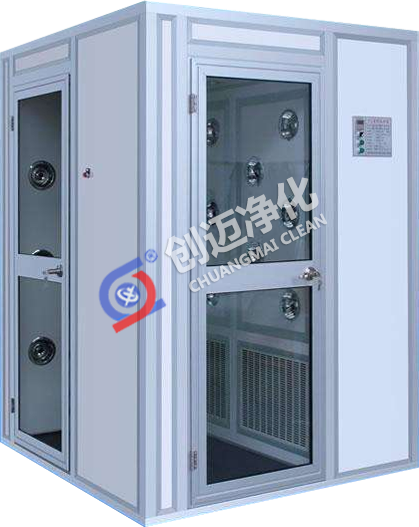

Single dual-color plate leaching briefing room (FLS-1C-1)
Wind is a clean room leaching plant and associated ancillary equipment clean room, except for blown into the clean area of the body surface attachment and carrying dust, gas from the gate at the same time, to prevent the unauthorized access to clean up the air cleaner region. Is a human, material purification and prevent outdoor air pollution effectively clean the equipment, high universality, and clean rooms and all supporting the use of cleaner plants.
FLS series of wind caused leaching room except manually open form, but also can be made electronic forms or automatic door interlocked forms. In addition to manually blowing at the same time cause leaching form, but also can cause leaching of blowing automatically.
leaching wind-blown bilateral room.
Wind leaching Room production, the basic frame structure can be divided into the following three:
1、Color-coated steel sandwich plate aluminum alloy structure
2、Bending paint structural steel
3、Bending stainless steel structure
(The above can be based on customer demands need to design, production)

FLS-1Atype
FLS-1Ctype
FLS-2Ctype
Wind leaching channel
 The number of users
Single
Single
Double

Customized according to customer needs
 Wind leaching time
0-99s Adjustable
 The number of nozzles
6個(gè) (Single sides)
12個(gè)(Double sides)
24個(gè)(Double sides)
 Nozzle diameter
φ30mm
 I wind nozzle
20~28m/s
 Filter efficiency
The size≥0.5μm   For dust 99.99% (Sodium Yan)
 Wind leaching District Size
 deep ×width × high
750×750×1950
750×750×1950
750×1600×1950
 Wind leaching Room Size
1200×850×2050
1550×850×2050
1550×1700×2050
 Power
AC 3N 380V 50HZ
 Maximum Power(W)
550
1100
2200
 Weight(kg)
200
250
500
 Dimension efficient filters(mm)
600×600×120×1
600×600×120×2
600×600×120×4
Note: FLS-series wind leaching room addition to manually open form, but also can cause the form to open the door automatically, user specified in the proposed order. Lin Feng-room addition to electrical control, may also cause such as Ex-special form, users specify when ordering. Wind can also cause leaching Room three forms, in 90 degrees to the direction of access, users specify when ordering.
